MG10 Series
New Upgrade Indoor Rental Series
Píxel pitch: 1.9/2.6/3.9/4.8mm
Cabinet size: 500*500*71mm
Operating environment: Indoor
Request A Solution
Perfect Vision, Easy Use
Efficient Maintenance
·The power box is removable and features a partition design for quick maintenance.
·An internal pin connection within the cabinet streamlines disassembly for ease of service.
Platform Design
Different modules with different pixel pitches can be used on one frame. It can also be spliced with the MG Cube & MU indoor series.
Seamless Visuals with High Flatness
The cabinet adopts the integrated design, it has greatly improved flatness for the modules and the splicing accuracy between panels, achieving optimal display consistency.
Enhanced Configuration with No Additional Cost
Enjoy a 7680Hz refresh rate, 18-bit grayscale IC, and a 9000:1 contrast ratio for HDR display for an unparalleled visual experience.
Perfect Black Consistency
Significantly addresses the issue like redness and bluish-green color caused by uneven heat dissipation with Thermal Compensation Technology.
Lower Lamp-fall Rate
The exclusive TET tech minimizes LED damage during transport or operation to reduce maintenance costs.
High Reliability for Debugging
·One-click to reset to the standard vision to save time while debugging.
·Dual backup support for calibration, offering enhanced security.
Creative Shapes

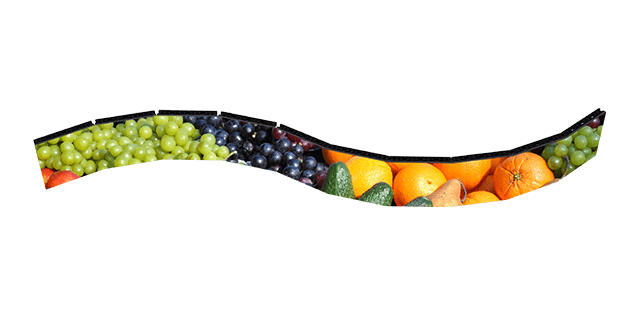

·Curved splicing: Featuring MG Curved connectors, it supports ±10°curves (P1.9 offers ±5°)
·Creative splicing: Combined with the MG Creative-Extended Series can achieve letters, numbers, hearts, etc.
·Dislocation splicing: Vertical, horizontal, and front-back dislocation.
Optional Cube-shaped Solution
Cube or L-shaped options are available in the MG10 Cube version with a 45° edge-cut cabinet, offering more dimensional design possibilities.
Application Scenarios
Perfect for high-end conference, rewarding ceremony, indoor concerts, TV studio, etc.
PARAMETERS
DOWNLOAD
| Pixel Pitch（mm） | 1.9 | 1.9 | 2.6 | 2.6 | 3.9 | 4.8 |
| Operating Environment | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Module Size（mm） | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size（mm） | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 |
| Cabinet Resolution (W×H) | 256*256 | 256*256 | 192*192 | 192*192 | 128*128 | 104*104 |
| IP Grade | IP50 | IP50 | IP50 | IP50 | IP50 | IP50 |
| Weight (kg/cabinet) | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 |
| White Balance Brightness (nit) | 800~1000 | 1200~1500 | 800-1000 | 1200-1500 | 800~1000 | 800-1000 |
| Horizontal / Vertical Viewing Angle | 160/120 | 160/120 | 160/120 | 160/120 | 160/120 | 160/120 |
| Power Consumption (W/m²) | 450±15%/150±15% | 600±15%/200±15% | 450±15%/150±15% | 650±15%/220±15% | 420±15%/140±15% | 420±15%/140±15% |
| Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Control System | Nova | Nova | Nova | Nova | Nova | Nova |
| Certification | CE,FCC,ETL | CE,FCC,ETL | CE,FCC,ETL | CE,FCC,ETL | CE,FCC,ETL | CE,FCC,ETL |
